How to Wire a Fluorescent Emergency Lamp

5 mins read

Last Updated on September 16, 2022

If you’re looking to learn how to wire a fluorescent emergency lamp, then this article will give you the information you need. This article covers four different types of fluorescent emergency lamps – standard, compact, LED emergency driver, and Bodine. There are also three wiring diagrams for LED emergency drivers. Read on to learn more! And be sure to check back soon for more articles on this topic! For now, enjoy the tips!

Standard fluorescent ballasts have one wiring diagram

Emergency ballasts work in the same manner as regular ballasts, providing the emergency light functions inside a fluorescent tube fixture. They provide power to one or two fluorescent tubes, depending on how the ballasts are wired. You may have a single emergency ballast or several standard ballasts, and you can wire them in parallel or series, as necessary. Regardless of the number of emergency ballasts, you need to have two separate sources of power, which should be connected to the same circuit.

Bodine compact fluorescent emergency ballasts have two wiring diagrams

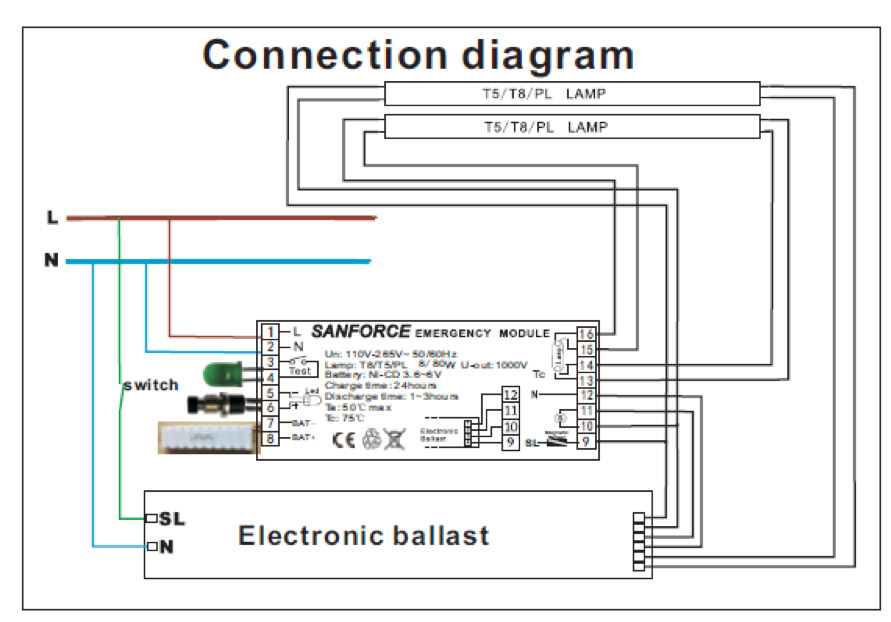

how to wire fluorescent emergency ballast

In the case of a power failure, the emergency ballast is a great option. The emergency ballast is designed to operate compact fluorescent lamps in downlight fixtures and wires in conjunction with existing A.C. ballasts. When the main electrical supply is restored, the emergency ballast operates the lamp and switches to Emergency Mode, which enables it to illuminate the lamps at reduced output levels for up to 90 minutes.

While standard fluorescent ballasts have one wiring diagram, emergency ballasts come with more than one. Emergency ballasts can have two wiring diagrams and may be used in parallel or series configurations. The two wiring diagrams are different for each ballast. An emergency ballast is not recommended for replacing a standard fluorescent ballast unless you have extensive experience in lighting systems. Nevertheless, it is possible to replace a malfunctioning emergency ballast yourself if you have the proper knowledge and experience.

Rapid start ballasts have two wiring diagrams

There are two types of rapid start emergency ballasts. The first type uses a single wire to connect to lamp terminals. The other type uses two wires to connect to the lamp. Both types have two wiring diagrams, which may be confusing if you’re not familiar with them. Luckily, you can easily figure out which type you have by following the instructions below. These instructions also include pictures of the different parts of the ballast.

These emergency ballasts can be used to power both red and yellow/blue lamps. The red and yellow leads are connected to a small capacitor. This capacitor causes the yellow/blue lamp to start first. This system is called a series ballast. Rapid start emergency ballasts have two wiring diagrams to make it easier for you to determine which one will work best for your needs. The two wiring diagrams are also helpful when you have a lot of lamps in a house.

LED emergency drivers have three wiring diagrams

An LED emergency driver has three wiring diagrams: the BSL722 and the BSL742. The BSL722 is a low voltage normally-open, IP67-rated LED emergency driver. It can run up to 23.1 Watts of LED lighting for 90 minutes and is suitable for wet and damp locations. The BSL742 is also available with a flat battery or a triangular battery.

A BSL722 automatic LED emergency driver will switch into emergency mode when the AC power fails. The BSL722 will operate LEDs in emergency mode for at least 90 minutes, until the AC power is restored. The information provided herein is for informational purposes only and should not be relied on. The information is not intended to be a commercial offer and does not constitute part of any contract or quotation. The information provided on this page does not constitute an offer.
